Turla APT Group Attacking European Ministry of Foreign Affairs

The well-known advanced persistent threat (APT) group Turla, based in Russia, is said to be going after the European Ministry of Foreign Affairs.

This new cyber espionage attempt shows how innovative and persistent Turla is.

The group has been active since 2004 and is known for its high-profile attacks on government agencies and key businesses worldwide.

Free Webinar on Live API Attack Simulation: Book Your Seat | Start protecting your APIs from hackers

The Attack Vector: Microsoft Outlook Exploited

According to Trendmicro reports, the operation, which was due in August 2018, targeted Microsoft Outlook and The Bat!, an Eastern European favorite email client.

Turla wanted to access private information by hacking these sites and sending all outgoing emails to attackers.

This method not only let the group listen in on conversations but also used email to send information to its command and control (C&C) servers.

LunarWeb and LunarMail were used to compromise a European MFA and its diplomatic missions.

A big part of Turla’s strategy in this operation was using specially made PDF files, which were probably also used to do the first breach.

Once they got into the systems, the group used their complex toolkit, which includes backdoors and custom malware, to stay on top of them and keep power over them.

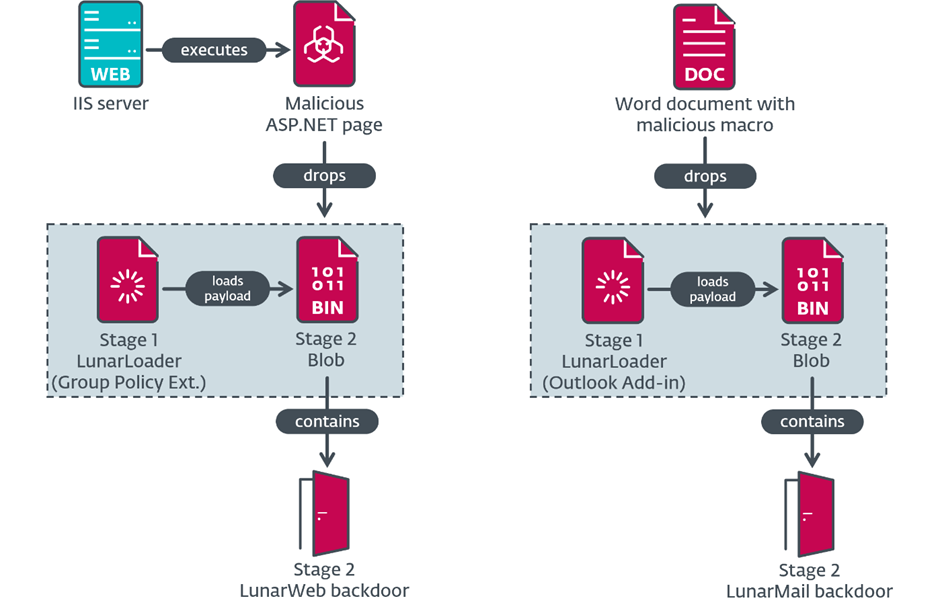

Despite not knowing the whole initial compromise, researchers detected an installation-related component in one of the server compromises: a compiled ASP.NET web page from these source files:

• aspnet_clientsystem_web.aspx
• aspnet_clientsystem_web.cs

System_web.aspx is a known IoC of China-aligned APT Hafnium, which exploits Microsoft Exchange Server vulnerabilities. We think this is a coincidence or false flag.

The system_web.aspx page returns a harmless-looking Zabbix agent log. The SMSKey cookie secretly requires a password. Using the password and salt Microsoft.SCCM.Update.Manager, an AES-256 key, and IV are generated to decode two embedded blobs, which are dropped to two temporary files in a directory restricted from scanning.

Analyzers don’t know the password, but the file sizes match the Stage 1 loader and Stage 2 blob with the LunarWeb backdoor.

After looking at the installers in the last part, look at the loaders, and finish by looking at their payloads, researchers didn’t know about two backdoors before.

LunarLoader starts the execution sequence.

It decrypts the Stage 2 blob route and reads an encrypted payload using RC4, a symmetric key cipher.

Instead of a mutex or event, it opens and creates a mailslot with a unique name to ensure only one loader instance is active.

The MD5 hash of the computer’s DNS domain name generates and verifies a decryption key.

The payload is decrypted with AES-256 to create a PE file. LunarLoader allocates PE image memory and decrypts an exported PE function name to run in a new thread. The function has a reflective loader.

Payload decryption using DNS is an execution barrier. The loader only works in the intended organization, which may hinder analysis without the domain name.

LunarLoader can run alone or in trojanized open-source software.

The latter occurred with a trojanized AdmPwd, a Windows Local Administrator Password Solution component.

Persistence method	Loader path(s)	Host process	Note
Group policy extension	C:WindowsSystem32en-USwinnet.dll.mui C:Program FilesLAPSCSEAdmPwd.dll*	svchost.exe -k GPSvcGroup	The AdmPwd dll is a known legitimate file path of Microsoft LAPS.
System DLL replacement	C:WindowsSystem32tapiperf.dll	wmiprvse.exe	Replacing a legitimate	Windows DLL.
Outlook add‑in	%USERPROFILE%Gpg4wingpgol.dll	outlook.exe	N/A

It has been a long time since Turla changed its strategies and tools, which makes it one of the most advanced and tough APT groups.

The group is known for using both common and uncommon malware families, like Carbon and Kazuar, and for having command and control systems that are based on satellites.

Over the years, Turla has regularly targeted government agencies, the military, schools, research labs, and drug companies.

Since this campaign against the European Ministry of Foreign Affairs became public, there have been calls for more cooperation between countries in hacking.

Sharing information and the best ways to do things is seen as very important for countries and groups to fight the threats that come from state-sponsored players like Turla.

Despite sharing a loader, code overlaps, and instructions, the backdoors use different C&C communication techniques. LunarWeb, the first backdoor, employs HTTP(S) to impersonate Windows Update traffic.

LunarMail, the second backdoor, uses PNG or PDF files to steal data from Outlook via email.

MITRE ATT&CK techniques

This table was built using version 15 of the MITRE ATT&CK framework.

Tactic	ID	Name	Description
Reconnaissance	T1591	Gather Victim Org Information	LunarMail’s communication method indicates prior knowledge about compromised institutions.
Resource Development	T1583.002	Acquire Infrastructure: DNS Server	Stage 0 macro pings a domain from free DNS hosting provided by ClouDNS.
T1583.003	Acquire Infrastructure: Virtual Private Server	Turla has used VPS hosting providers for C&C servers.
T1584.003	Compromise Infrastructure: Virtual Private Server	Turla has used compromised VPSes for C&C purposes.
T1586.002	Compromise Accounts: Email Accounts	Turla has used likely compromised email accounts for communication with the LunarMail backdoor.
T1587.001	Develop Capabilities: Malware	Turla has developed custom malware, including loaders and backdoors.
Execution	T1047	Windows Management Instrumentation	LunarWeb obtains system information by using WMI queries.
T1059	Command and Scripting Interpreter	LunarWeb and LunarMail can execute Lua scripts.
T1059.001	Command and Scripting Interpreter: PowerShell	LunarWeb can execute PowerShell commands.
T1059.003	Command and Scripting Interpreter: Windows Command Shell	LunarWeb can execute shell commands via cmd.exe.
T1059.005	Command and Scripting Interpreter: Visual Basic	Stage 0 Word document contains a VBA macro.
T1106	Native API	LunarWeb and LunarMail use various Windows APIs.
T1204.002	User Execution: Malicious File	Data from the Local System
Persistence	T1137.006	Office Application Startup: Add-ins	LunarMail loader is persisted as an Outlook add-in.
T1547	Boot or Logon Autostart Execution	A LunarWeb loader is persisted as a Group Policy extension.
T1574	Hijack Execution Flow	A LunarWeb loader is persisted by replacing the system DLL tapiperf.dll.
Defense Evasion	T1027	Obfuscated Files or Information	LunarWeb and LunarMail are AES-256 encrypted on disk.
T1027.003	Obfuscated Files or Information: Steganography	LunarMail stages exfiltration data into a PNG image or PDF document.
T1027.007	Obfuscated Files or Information: Dynamic API Resolution	LunarMail dynamically resolves MAPI functions.
T1027.009	Obfuscated Files or Information: Embedded Payloads	LunarMail installer has payloads embedded in a DOCX format document.
T1036.005	Masquerading: Match Legitimate Name or Location	Filenames used by LunarWeb and LunarMail loading chains mimic legitimate files.
T1070.004	Indicator Removal: File Deletion	LunarWeb and LunarMail can uninstall themselves by deleting their loading chain.
T1070.008	Indicator Removal: Clear Mailbox Data	LunarMail deletes email messages used for C&C communications.
T1140	Deobfuscate/Decode Files or Information	LunarWeb and LunarMail decrypt their strings using RC4.
T1480.001	Execution Guardrails: Environmental Keying	LunarLoader decrypts its payload using a key derived from the DNS domain name.
T1620	Reflective Code Loading	LunarWeb and LunarMail are executed using a reflective loader.
Discovery	T1007	System Service Discovery	LunarWeb retrieves a list of services.
T1016	System Network Configuration Discovery	LunarWeb retrieves network adapter information.
T1057	Process Discovery	LunarWeb retrieves a list of running processes.
T1082	System Information Discovery	LunarWeb retrieves system information such as OS version, BIOS version, domain name, and environment variables. LunarMail retrieves environment variables.
T1518.001	Software Discovery: Security Software Discovery	LunarWeb discovers installed security solutions via the WMI query wmic /Namespace:\rootSecurityCenter2 Path AntiVirusProduct Get *.
Collection	T1005	LunarWeb and LunarMail use a statically linked Zlib library for compression of collected data.	LunarWeb and LunarMail can upload files from the compromised machine.
T1074.001	Data Staged: Local Data Staging	LunarMail stages data in a directory in %TEMP%.
T1113	Screen Capture	LunarMail can capture screenshots.
T1114.001	Email Collection: Local Email Collection	LunarMail collects recipients of sent email messages and can collect email addresses of Outlook profiles.
T1560.002	Archive Collected Data: Archive via Library	LunarWeb and LunarMail use a statically linked Zlib library for the compression of collected data.
Command and Control	T1001.002	Data Obfuscation: Steganography	LunarWeb can receive commands hidden in JPG or GIF images. LunarMail receives commands hidden in PNG images and exfiltrates data hidden in PNG images or PDF documents.
T1001.003	Data Obfuscation: Protocol Impersonation	LunarWeb impersonates legitimate domains in C&C communications by using a fake Host header and known URIs.
T1071.001	Application Layer Protocol: Web Protocols	LunarWeb uses HTTP for C&C communications.
T1071.003	Application Layer Protocol: Mail Protocols	LunarMail uses email messages for C&C communications.
T1090.001	Proxy: Internal Proxy	LunarWeb can use an HTTP proxy for C&C communications.
T1095	Non-Application Layer Protocol	Stage 0 macro pings the C&C server, utilizing ICMP protocol.
T1132.001	Data Encoding: Standard Encoding	LunarWeb may receive base64-encoded data from the C&C server.
T1573.001	Encrypted Channel: Symmetric Cryptography	LunarWeb and LunarMail encrypt C&C communications using AES-256.
T1573.002	Encrypted Channel: Asymmetric Cryptography	LunarWeb and LunarMail encrypt the AES key used in C&C communications using RSA-4096.
Exfiltration	T1020	Automated Exfiltration	LunarWeb and LunarMail automatically exfiltrate collected data to the C&C server.
T1030	Data Transfer Size Limits	LunarWeb splits exfiltrated data above 1.33 MB into multiple smaller chunks. LunarMail limits the size of email attachments containing exfiltrated data.
T1041	Exfiltration Over C2 Channel	LunarWeb and LunarMail exfiltrate data over the C&C channel.
